Unitronic  |  SKU: UH042-EXA

Unitronic Downpipe (1.8 TSI Gen3 MQB, AWD)

$1,600.00

Description

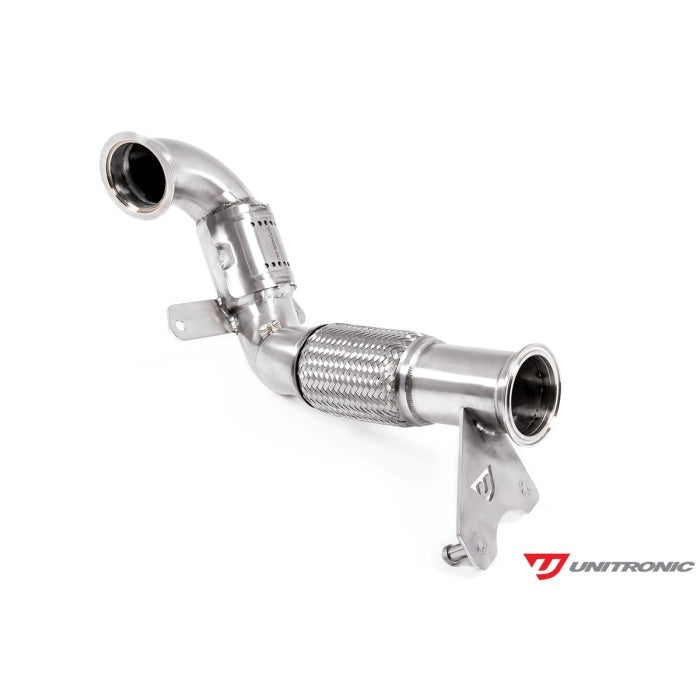

Constructed of 3" T304 stainless steel mandrel bent tubing, T316 stainless steel flanges, a corrugated stainless steel flex section, and TIG welded fabrication, this downpipe is built to withstand the test of time, while performing to the max. All Unitronic downpipes come equipped with a 200-cell high flow metallic catalytic converter and all transitions are flow-matched to allow for maximum performance and airflow.

In addition, Unitronic exhausts feature an easy-to-use v-band exhaust fastening system to ensure a fast and effortless installation and precise fitment. To finish it off, an OEM-inspired catalytic converter heat-shield protects against unwanted heat radiating in the exhaust tunnel. Every Unitronic Exhaust System comes equipped with a brushed matte finish for an elegant appearance that will last a lifetime. There's simply nothing like it!

Recommended Software
  • Stage 2
More Information

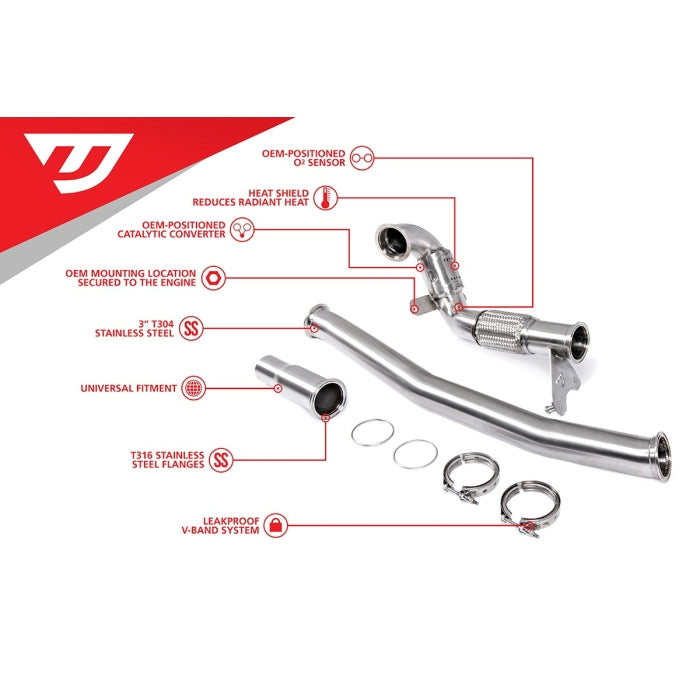

Features/Benefits
  • 3-inch T304 Stainless Steel Mandrel Bent Tubing:
    Quality Material that will not rust and will outlast your vehicle
  • T316 Stainless Steel V-Band Flanges:
    Durable and rust proof

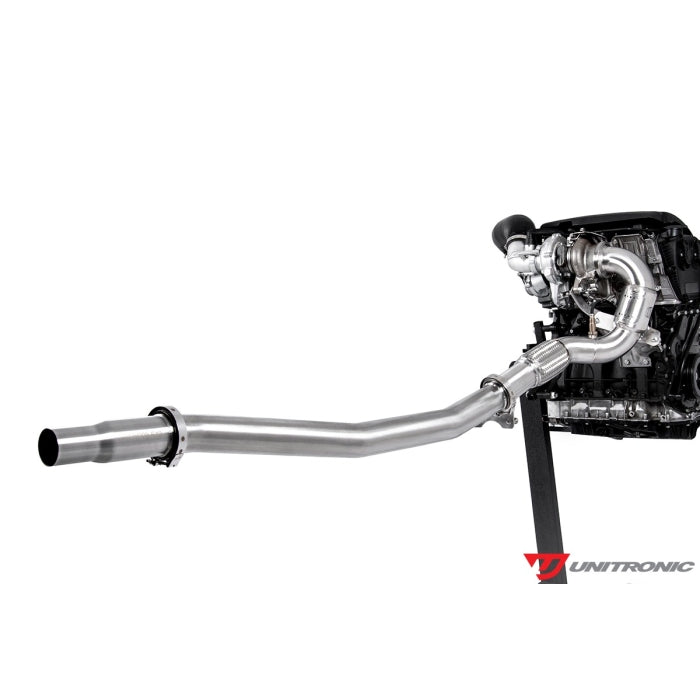

  • Direct bolt-on fitment with OEM mounting locations:
    Use all Factory mounting location on the engine and on front subframe.
  • Locked V-band Rotation:
    Securing downpipe to the engine assure no possible v-band flange rotation during hard acceleration
  • Factory catalyst position:
    Assure maximum efficiency of the catalytic converter in line with OEM catalytic converter warm up strategy.
  • 200-cell metallic matrix high-flow catalyst:
    Highly durable Matrix allowing minimal power loss while assuring maximum efficiency
  • OEM-inspired catalytic converter heat shield:
    Help to reduce radiant heat in the engine bay.
  • 80mm to 76.2mm turbo to downpipe transition:
    Assure a smooth flow transition between Turbine housing and 3” Stainless steel piping.
  • OEM Oxygen sensor placement:
    No need for O2 sensor extension or modification of the wiring harness
  • 8-inch Corrugated stainless steel flex section:
    High quality flex that will stay leak proof for years. It allows engine movement without stressing the factory rubber mounts

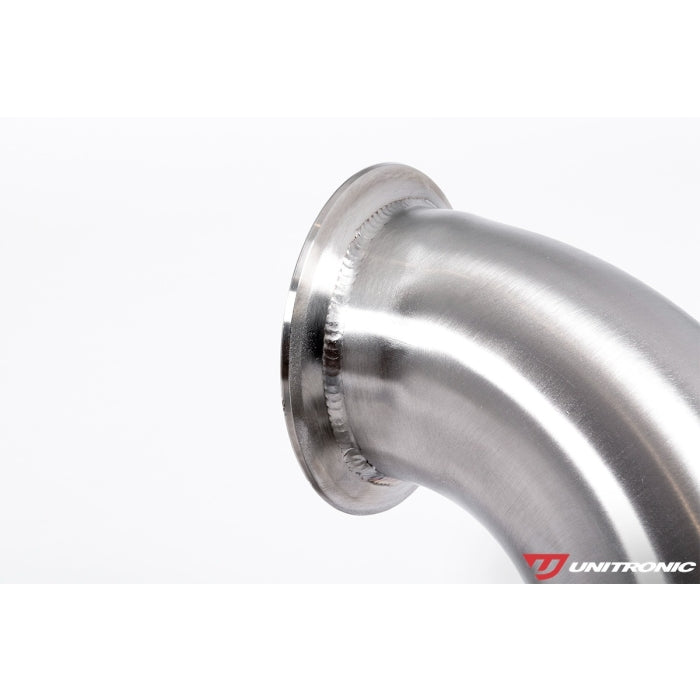

  • TIG welded construction:
    Professionally hand welded to assure longevity and leak proof.

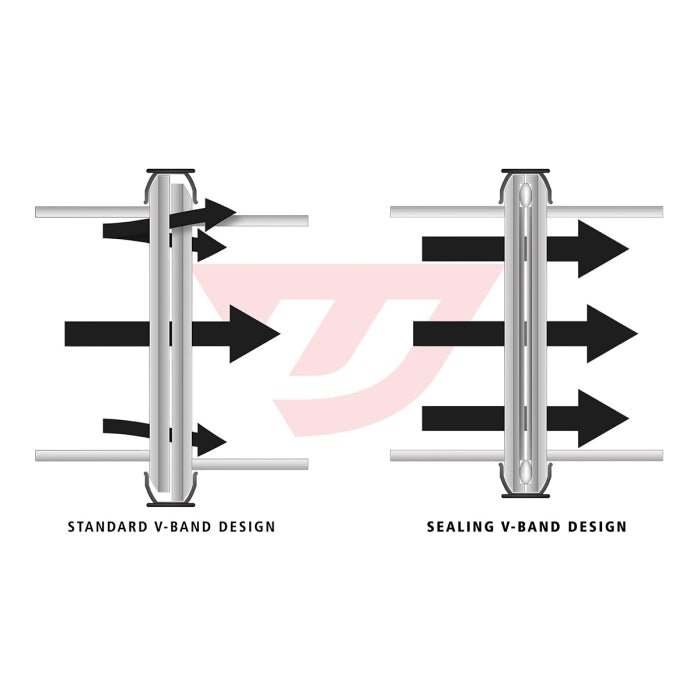

  • Unique v-band fastening system featuring Clampco® clamps:
    Maintain a perfect alignment every time while insuring a leak proof connection

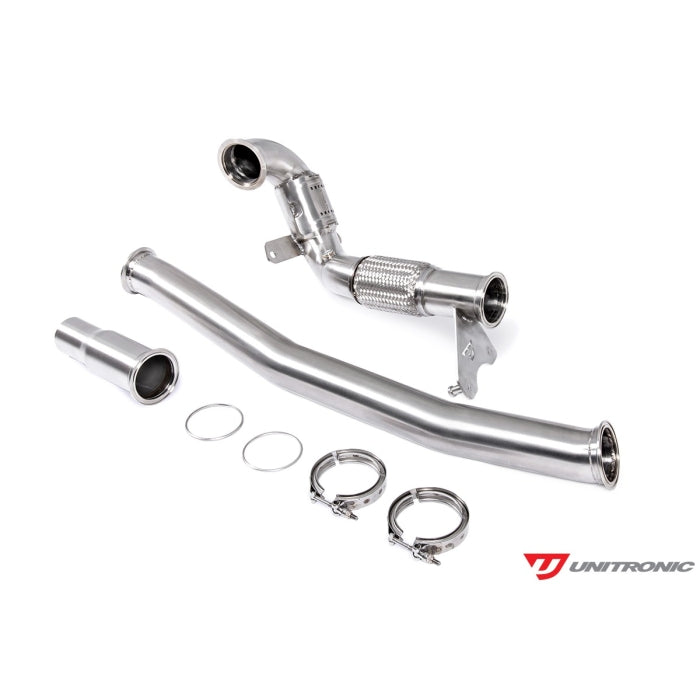

Hardware Included
  • Unitronic 3" Catatlytic Converter Section
  • Unitronic 3" Flex Section
  • Unitronic 3" Midpipe Section
  • 3 in TO 65 mm Reducer
  • Unitronic 3" V-Band Exhaust Clamps
  • Unitronic 3" V-Band Sealing Rings
  • All Necessary Hardware Included
Install Specifications

Featuring a unique v-band fastening system and engineered using the latest in 3D modeling technology, Unitronic Performance Exhaust Systems are made easy to install.


DIFFICULTY LEVEL: 4/5
