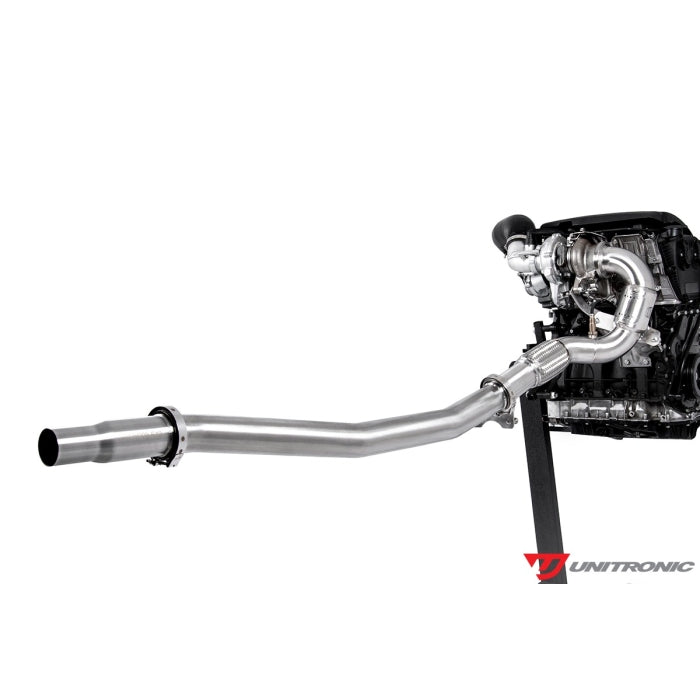

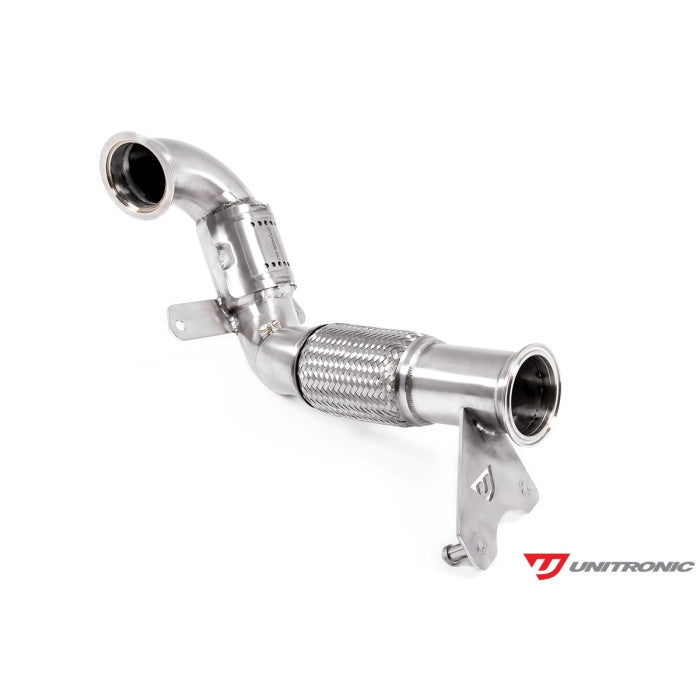

Constructed of 3" T304 stainless steel mandrel bent tubing, T316 stainless steel flanges, a corrugated stainless steel flex section, and TIG welded fabrication, this downpipe is built to withstand the test of time, while performing to the max. All Unitronic downpipes come equipped with a 200-cell high flow metallic catalytic converter and all transitions are flow-matched to allow for maximum performance and airflow.
In addition, Unitronic exhausts feature an easy-to-use v-band exhaust fastening system to ensure a fast and effortless installation and precise fitment. To finish it off, an OEM-inspired catalytic converter heat-shield protects against unwanted heat radiating in the exhaust tunnel. Every Unitronic Exhaust System comes equipped with a brushed matte finish for an elegant appearance that will last a lifetime. There's simply nothing like it!
Recommended Software
More Information

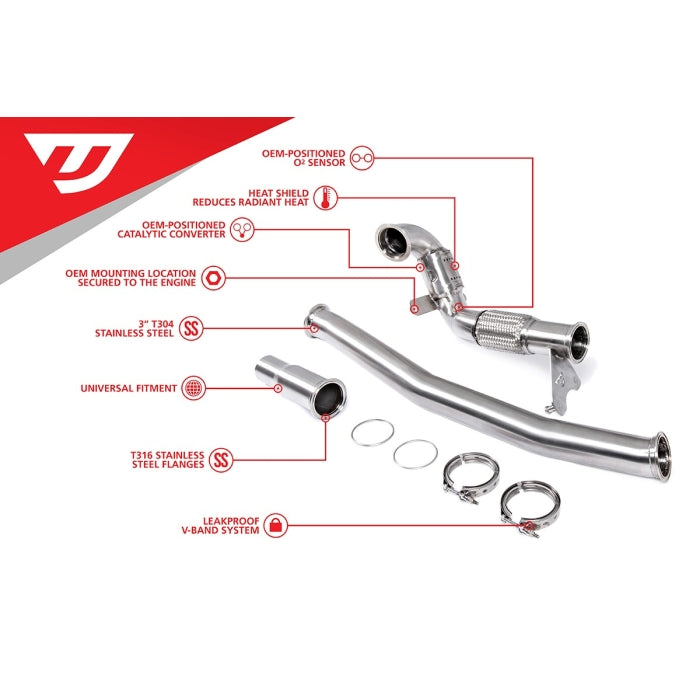

| Features/Benefits |
-
3-inch T304 Stainless Steel Mandrel Bent Tubing:
Quality Material that will not rust and will outlast your vehicle
-

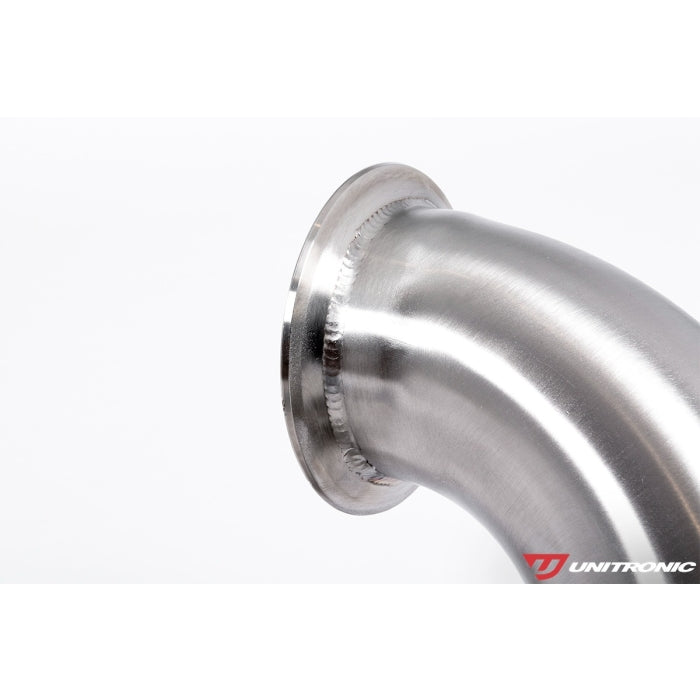

T316 Stainless Steel V-Band Flanges:
Durable and rust proof
-
Direct bolt-on fitment with OEM mounting locations:
Use all Factory mounting location on the engine and on front subframe.
-
Locked V-band Rotation:
Securing downpipe to the engine assure no possible v-band flange rotation during hard acceleration
-
Factory catalyst position:
Assure maximum efficiency of the catalytic converter in line with OEM catalytic converter warm up strategy.
-
200-cell metallic matrix high-flow catalyst:
Highly durable Matrix allowing minimal power loss while assuring maximum efficiency
-
OEM-inspired catalytic converter heat shield:
Help to reduce radiant heat in the engine bay.
-
80mm to 76.2mm turbo to downpipe transition:
Assure a smooth flow transition between Turbine housing and 3” Stainless steel piping.
-
OEM Oxygen sensor placement:
No need for O2 sensor extension or modification of the wiring harness
-
8-inch Corrugated stainless steel flex section:
High quality flex that will stay leak proof for years. It allows engine movement without stressing the factory rubber mounts
-
TIG welded construction:
Professionally hand welded to assure longevity and leak proof.
-

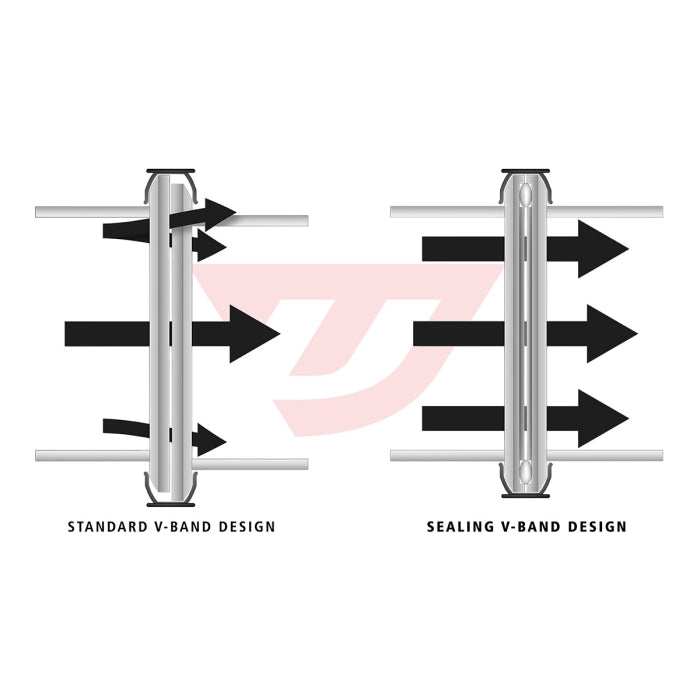

Unique v-band fastening system featuring Clampco® clamps:
Maintain a perfect alignment every time while insuring a leak proof connection
|

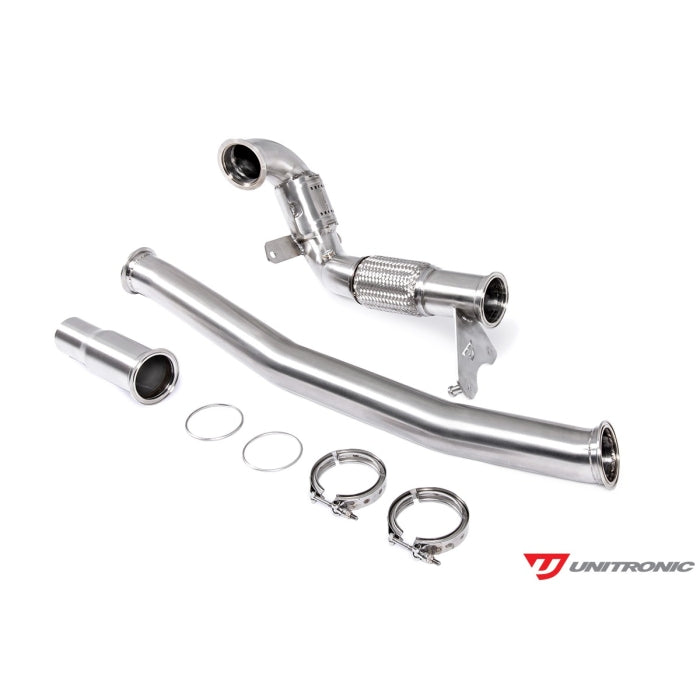

| Hardware Included |
- Unitronic 3" Catatlytic Converter Section
- Unitronic 3" Flex Section
- Unitronic 3" Midpipe Section
- 3 in TO 65 mm Reducer
- Unitronic 3" V-Band Exhaust Clamps
- Unitronic 3" V-Band Sealing Rings
- All Necessary Hardware Included
|
| Install Specifications |
Featuring a unique v-band fastening system and engineered using the latest in 3D modeling technology, Unitronic Performance Exhaust Systems are made easy to install.
|
