034 Motorsport - Audi B9 RS5 - X34 Carbon Fibre Full Cold Air Intake System - 034-108-1033 15.0 kg

034 Motorsport Australia - Audi B9 RS5 - X34 Carbon Fibre Full Cold Air Intake System - 034-108-1033.

034Motorsport's X34 Carbon Fibre Full Intake System delivers improved power, sound, and acceleration to B9/B9.5 Audi RS4/RS5 owners in a clean OEM+ package. Through extensive evaluation of the factory air duct and airbox designs, 034Motorsport's engineers were able to create a performance replacement that allows for increased airflow to the turbocharger and engine. This performance can be optimized even further by eliminating a critical flow restriction in the intake tract with the SüperDüper Turbo Inlet to create the X34 SüperDüper Insuction Bundle. The X34 Carbon Fiber Intake System offers measurable performance improvements, simple bolt-on installation, and unsurpassed fit and finish.

The X34 Carbon Fibre Intake System is available as X34 SuperDuper Insuction Bundle, as well as Additional Adapter Flange sizing for TTE720. The Stock Turbo Adapter Ring is included with the X34 SüperDüper Insuction Bundle.

Fits all current model Audi B9 RS5 with 2.9 TT petrol engine.

X34 CARBON FIBER FULL INTAKE SYSTEM FEATURES:

• Developed In-House by 034Motorsport's Engineering Team
• Fits Both Left and Right Hand Drive Configurations
• High-Quality Carbon Fibre Air Duct, Airbox, and Filter Tube Construction
• High-Gloss Epoxy Finish
• OEM+ Fit and Finish
• High Strength Metal Inner Ring at Clamp Points
• Dyno-Proven Horsepower Torque Gains
• Improved Airflow from Factory Airbox and Intake Tube
• Enhanced Engine Induction Sounds
• Improved Throttle Response
• Massive 5" Inlet Conical Pleated Cotton Air Filter
• Large-Diameter CFD-Optimized Carbon Fibre Filter Tube
• Reduced Intake Air Temperature
• Securely Installs Using Factory Mounting Grommets
• Simple, Straightforward Installation Instructions

MINIMIZING UNNECESSARY FILTER SHROUDING

034Motorsport focuses on optimizing every aspect of the intake system across a broad range of variables and compromises. A critical component of a high-flowing performance intake is the ability for air to flow around and into the filter. If the air cannot flow freely around the filter, it will be restricted from getting into it. Many aftermarket kits fit too large of a filter in an enclosure that cannot accommodate its size, thus choking the filter and reducing its overall flow. This often happens when a product is engineered for one variable at the expense of others. 034Motorsport conducted extensive tests and refined its development of the intake design to allow for maximum airflow surrounding the air filter, allowing for optimal airflow to, and through, the filter. The final result is the right size filter in the right size filter housing, creating maximum airflow and performance with OEM level filtering; the ultimate goal of any intake system. Be cautious of any intake that brags only of air filter size without taking into account the detrimental effects of shrouding the filter.

Significant effort went into developing this comprehensive performance intake solution for the twin-turbocharged 2.9 TFSI engine found in the latest generation B9 Audi RS5. Subsequently, the X34 Carbon Fibre Full Intake System offers discerning enthusiasts measurable increases in horsepower and torque, sporty induction and turbocharger sounds, and a beautiful carbon fibre airbox and inlet pipe design.

Throughout the development process, multiple designs were modelled, prototyped, and tested - all to ensure that the X34 Carbon Fibre Full Intake System delivers measurable performance benefits and superb fitment. The result is a partially-enclosed airbox which uses the factory fresh air inlet duct and heat shield, while housing a massive 5" inlet conical air filter, and a matching CFD-optimized carbon fibre filter tube.

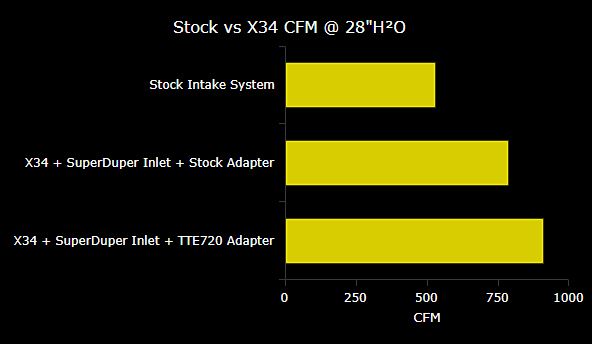

CFM Gains:

CFM stands for "cubic feet per minute" of airflow, the higher the number, the higher the horsepower an intake can support, at 034Motorsport we design our intakes to have substantial flow increases over the factory intake, we test all our intakes at 28" of water (how much vacuum is used to suck air through the intake) on a Superflow airflow bench which gives us very accurate and repeatable test results. A stock intake that flows 200CFM may only freely support about 300HP. An intake that flows 400CFM can support roughly twice that power or 600HP. With the measured flow from the X34 SüperDüper Insuction Bundle, we find that the system is more than capable of supporting well over 1000hp of restrictionless flow.

• Stock Intake & Turbo Inlet Assembly: 526 CFM @ 28in H²O
• X34 SüperDüper Insuction Bundle w/ Stock Turbo Adapter Flange: 783 CFM @ 28in H²O, 49% Increase
• X34 SüperDüper Insuction Bundle w/ TTE720 Adapter Flange: 908 CFM @ 28in H²O, 73% Increase

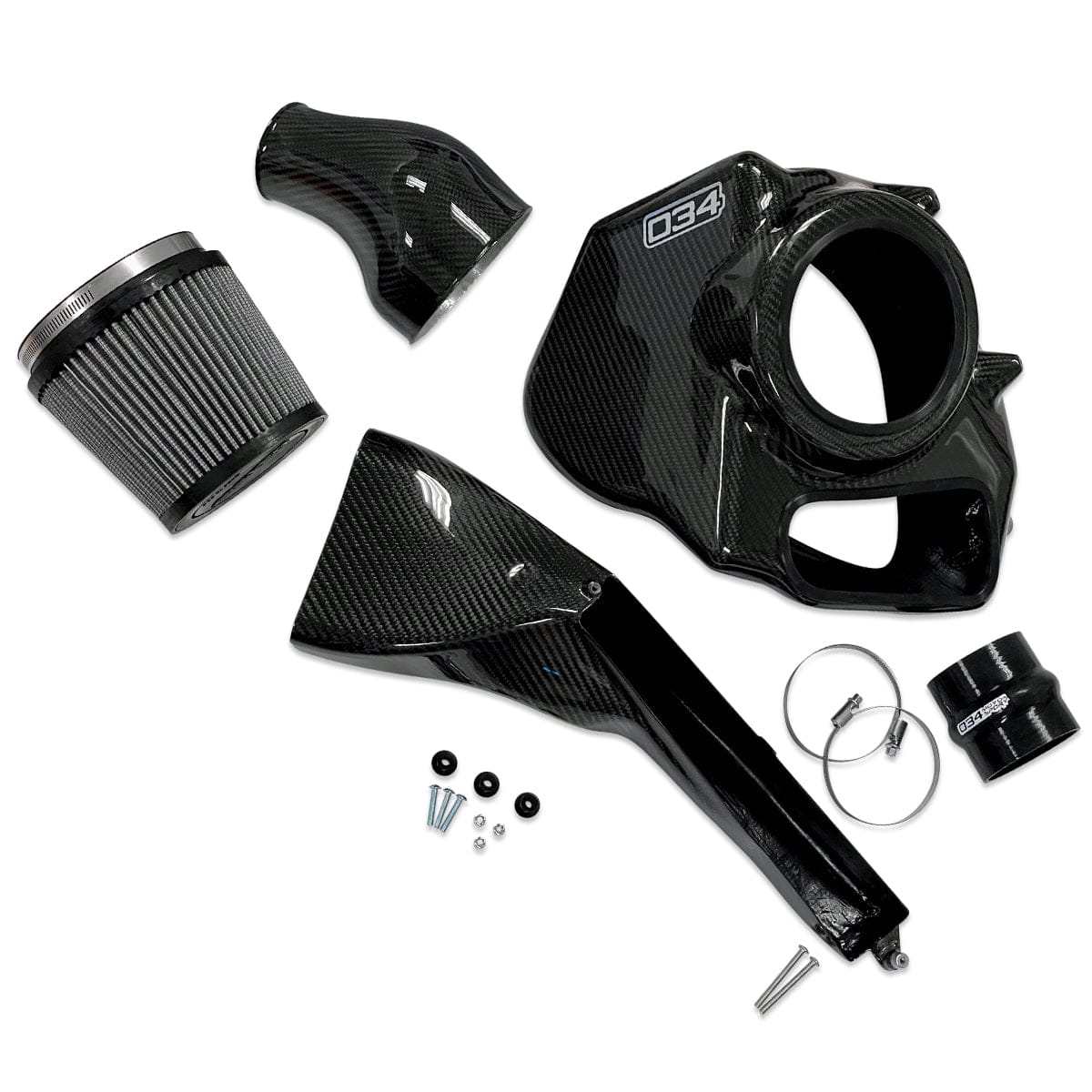

WHAT’S INCLUDED:

• 034Motorsport Carbon Fibre Airbox
• 034Motorsport Carbon Fibre Inlet Pipe
• 034Motorsport Carbon Fibre Intake Duct
• 034Motorsport High Performance 5" Inlet Air Filter
• 034Motorsport Silicone Hose
