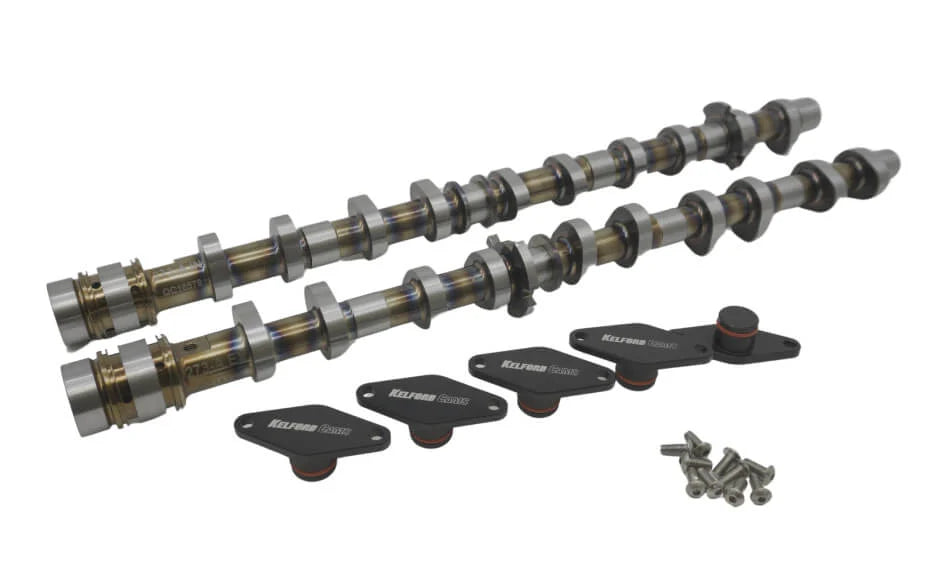

Drag racing camshafts suited to high rpm power. Designed for engines making 1400+hp using 75mm-83mm turbos. Requires KVS273-BT valve spring upgrade. NOTE: 7mm dowel pin supplied to limit Intake cam gear advance to 96° when using OEM piston designs. For best results, fly cut pistons for maximum stroke (Please check Piston to Valve clearance). Kelford Cams deletes the AVS Variable exhaust lift system; Cam kit is supplied with Kelford billet blanking plates.
- This change requires tuning adjustments because of solenoid removal, email sales team for a list of calibrators.
Engine Make:
AUDI
Engine Model:
RS3 EA855 DAZA 2.5L
Part Number:
273-B Camshaft
Valve clearance
Intake:
Set: at theExhaust:
Set: at theCam Lift:
Intake:
6.89mm
Exhaust:
6.42mm
Rocker Ratio:
Intake:
1.67
Exhaust:
1.79
Nett Valve Lift:
Intake:
11.50mm
Exhaust:
11.50mm
Advertised Duration @ 0.10mm
Intake:
286
Exhaust:
292
Duration @1.00mm VALVE LIFT
Intake:
242
Exhaust:
252
Timing @1.00mm VALVE LIFT
IVO:
11 ATDC
EVO:
92 BBDC
IVC:
73 ABDC
EVC:
20 BTDC
Suggested Centre Lines:
Intake:
132
Exhaust:
146
VALVE Lift @ TDC
Intake:
0.43mm
Exhaust:
0.01mm
