034 Motorsport - Motorsport Billet Adjustable Front Sway Bar End Link - BMW E9X M3 and E87 1M 1.23 kg

034 Motorsport Australia - Motorsport Billet Adjustable Front Sway Bar End Link - BMW E9X M3 and E87 1M.

Replace your flimsy, imprecise OEM sway bar end links with the performance engineered 034Motorsport Billet Adjustable Front Sway Bar End Link Kit from 034Motorsport for E9X M3 and E87 1M.

Designed to improve handling, road feel, and steering response, 034Motorsport's Billet Adjustable Front Sway Bar End Links allow for the uncompromised transfer of suspension energy and movement to the sway bar. With its adjustable length design, the 034Motorsport Billet Adjustable Front Sway Bar End Links allow for lowered vehicles to maintain proper preload on the sway bar.

Please Note: For lowered vehicles, always check all clearances over the full articulation of the suspension in order to identify possible interference. We recommend running 034Motorsport suspension components, as they have been designed and tested to work together, without interference.

Replace your flimsy, imprecise OEM sway bar end links with 034Motorsport performance-engineered adjustable spherical end links! 034Motorsport's Billet Adjustable Front Sway Bar End Links allow for the uncompromised transfer of suspension energy and movement to the sway bar. With its adjustable length design, the 034Motortsport Billet Adjustable Front Sway Bar End Links allow you to maintain proper preload on the sway bar when lowering your car. 034Motorsport sway bar end links are the only options on the market with high misalignment sphericals, ensuring that the end links do not bind as the suspension articulates.

In addition, adjustable sway bar end links allow you to adjust preload on the sway bar, as well as alleviate potential sway bar clearance issues caused by lowering your car.

WHAT IS SWAY BAR PRELOAD?

When a sway bar is preloaded, it means that it is already twisted when the car is at rest, and it’s trying to roll the car to one side because of this. This will lead to asymmetric behavior and the car will favor tuning one way versus the other.

Preload is detectable when the car is at ride-height on a flat surface, and removal of an end link is difficult because the sway bar is already twisted and applying force on the bolt, or installing the end link is difficult because the bar needs to be twisted to insert the bolt through the hole in the sway bar. With equal-length non-adjustable sway bar end links, removing preload is not possible.

By utilizing our 034Motorsport adjustable end links, the lengths of each end link can be adjusted so that the end link can be easily installed at ride height without needing to twist the bar to get it to fit. Zero preload provides symmetrical handling in right and left turns.

FEATURES:

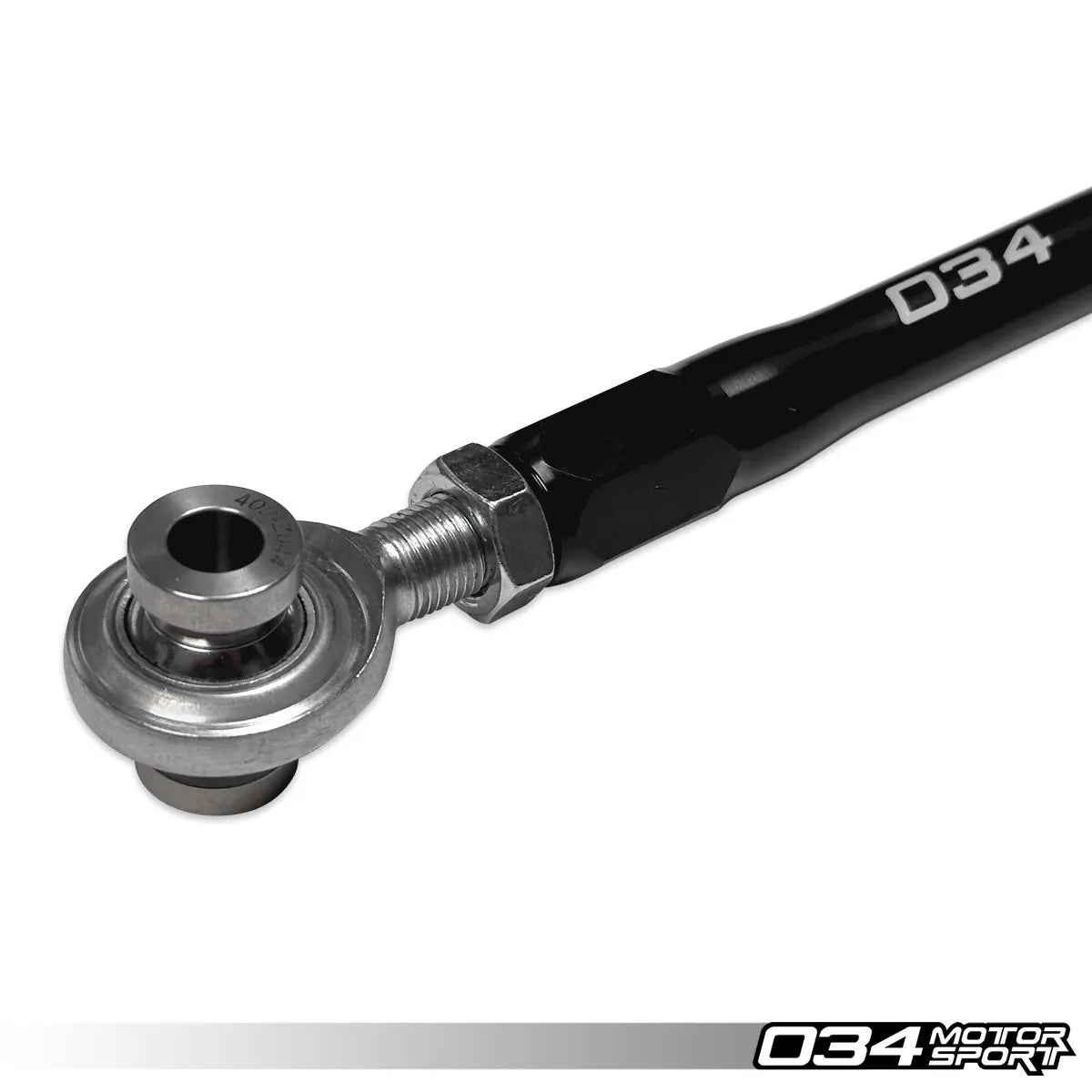

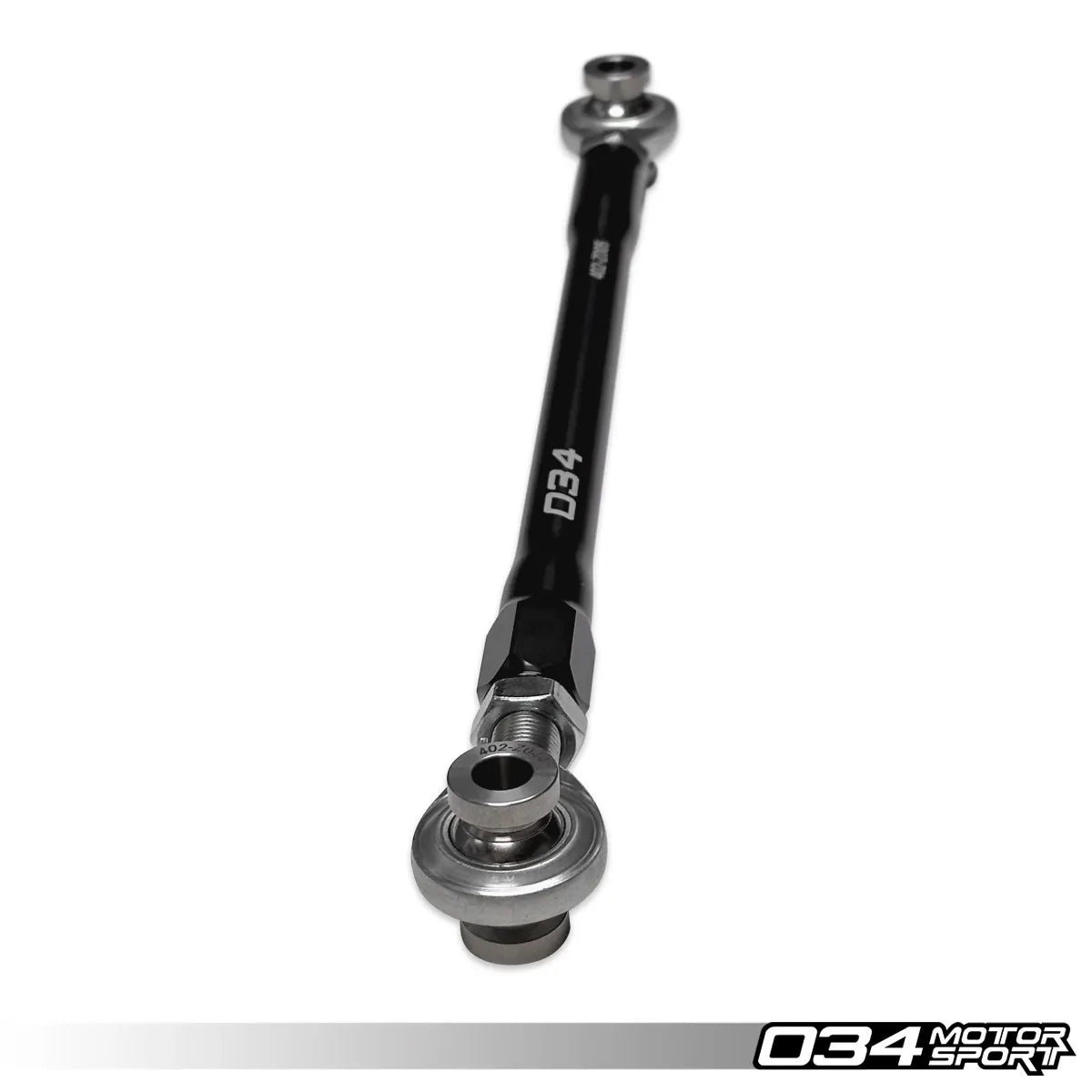

• CNC Machined 6061-T6 Aluminum End Link Bodies - Anodized Black for Durability
• Fully Adjustable

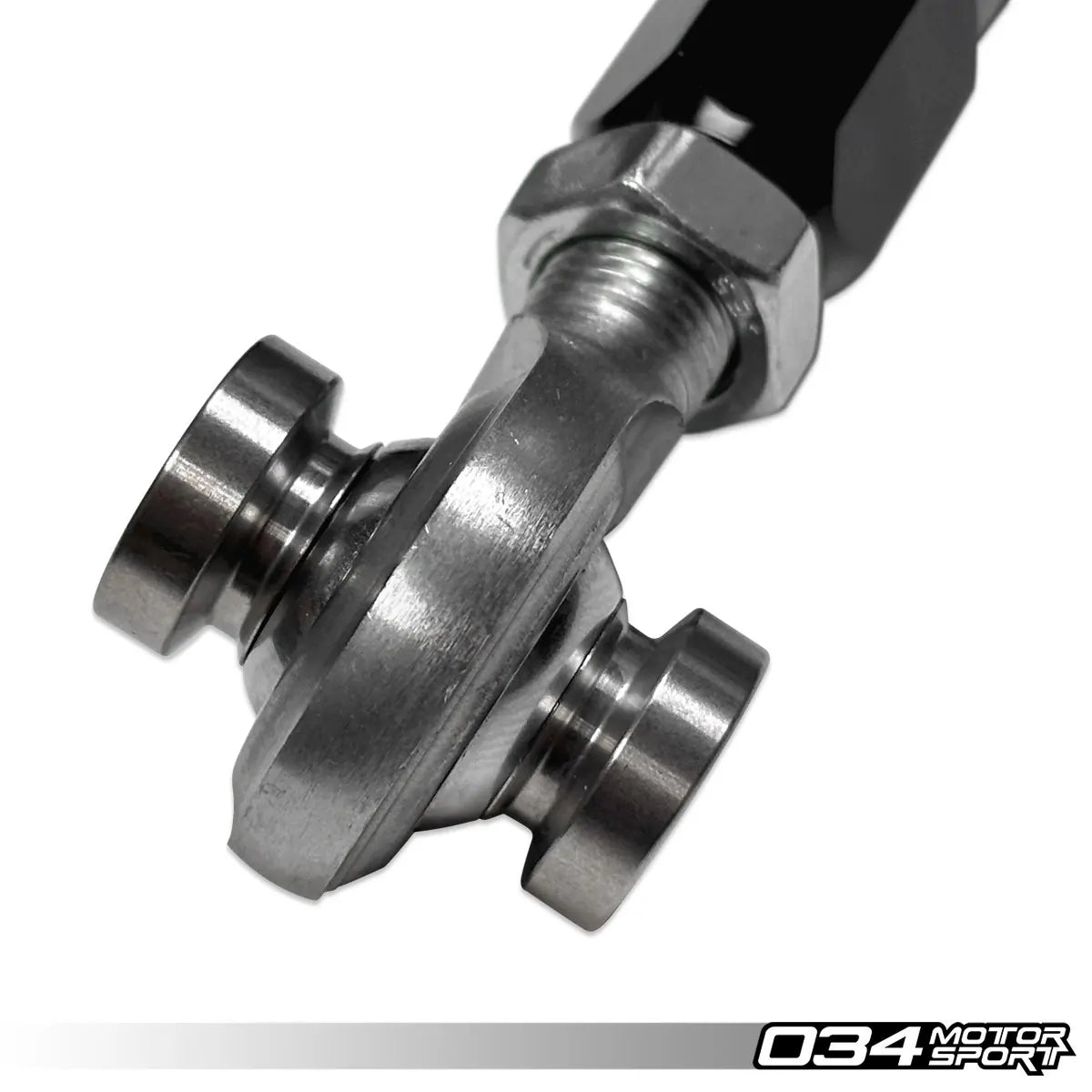

• Motorsport Quality Aurora Spherical Bearings Featuring Self-Lubricating Teflon Race Lining
• Spherical Design Eliminates Deflection and Ensures Proper Articulation
• Improved Steering Response, Handling, and Road Feel
• Easy, Straightforward Installation
• Fully Rebuildable
• Sold In Pairs
• Fits E9X M3 and E87 1M

OE PART INTERCHANGE:

• 31352283441
• 31352283442

WHAT’S INCLUDED:

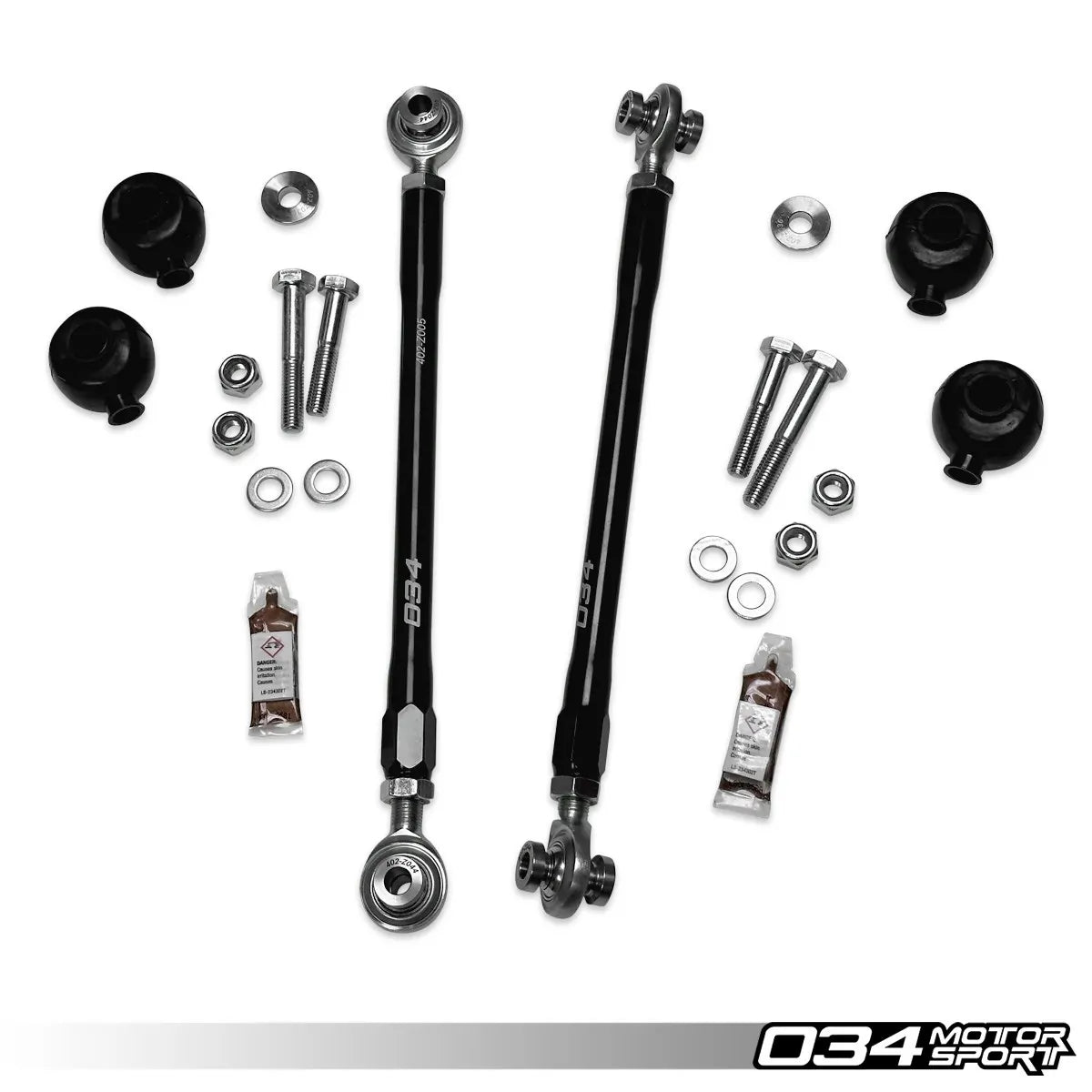

• Motorsport Billet Adjustable Front Sway Bar End Link (Pair)

Fitment:

Installation:

The installation of your Motorsport Billet Adjustable Front Sway Bar End Link For BMW E9X M3 and E87 1M is a straightforward process that will take approximately 1 hour to complete.

Download the Motorsport Billet Adjustable Front Sway Bar End Link For BMW E9X M3 and E87 1M Install Guide
